DAPAI · Electric Forklift & Forklift AGV
Forklift LiFePO4 Battery Systems
Stable lithium power, intelligent battery management and vehicle-specific pack design for electric forklifts, AGVs and industrial vehicles.
Built for material handling
Power matched to your truck and work cycle.

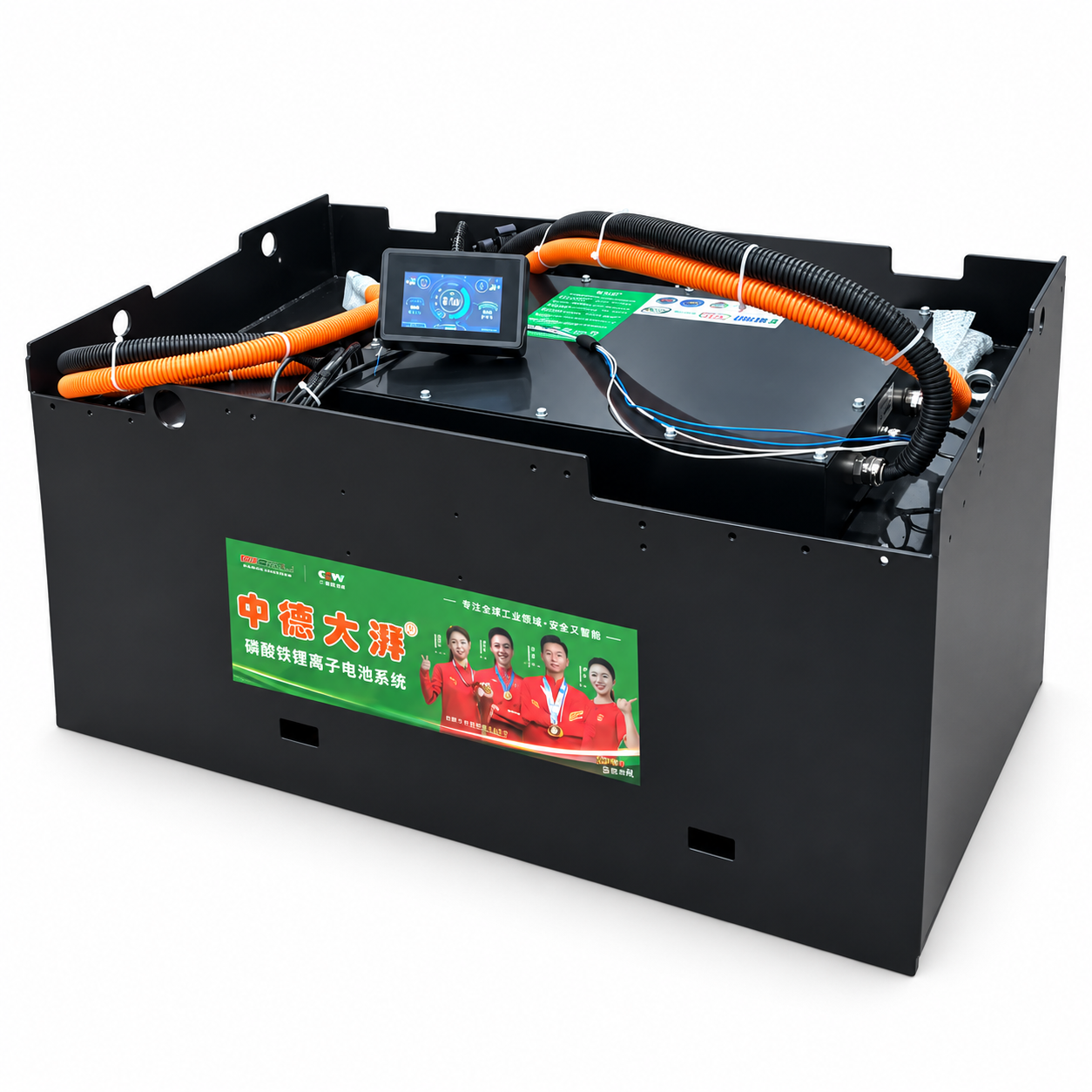

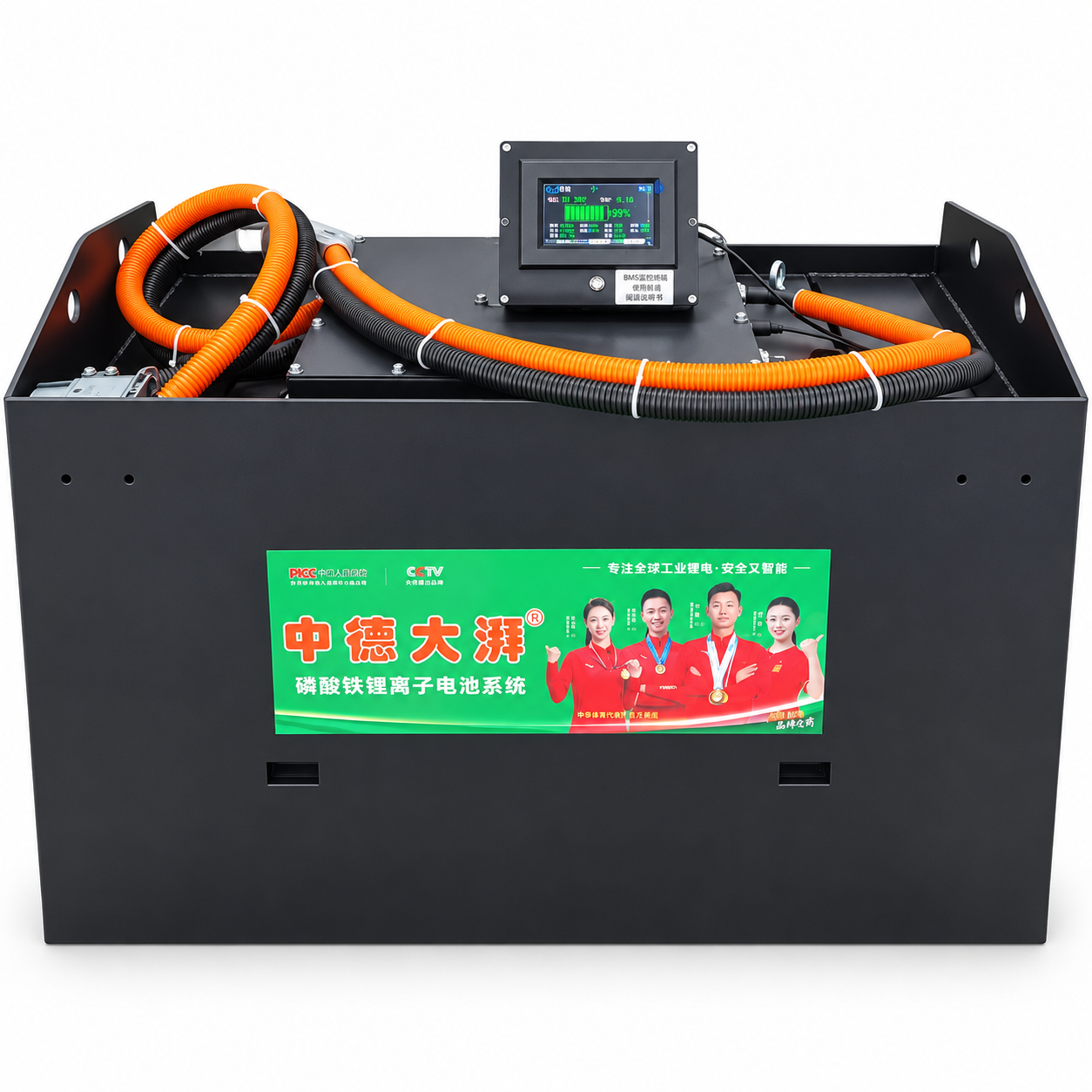

DAPAI forklift battery packs use lithium iron phosphate cells and are configured around the vehicle platform, battery tray and operating pattern. The product catalogue covers electric forklifts and forklift AGVs, with representative systems from 24V to 80V and multiple voltage and capacity combinations.
For suitably configured fleets, opportunity charging during planned breaks can help keep equipment available across shifts. Confirm the battery, charger profile and duty cycle together before deployment.
Pack capacity, output current, charger settings, enclosure dimensions and counterweight requirements are selected for the specific truck.
System advantages
Engineered as a complete battery system
From cell-level monitoring to enclosure and vehicle interfaces, specify the features around your material-handling application.
LiFePO4 Chemistry
Stable traction power, high energy density and long cycle life, as described in the product catalogue.
Generation II I-BMS
Battery status management with cell balancing and configured protection for charging and discharging.
GPS & Remote Monitoring
Optional GPS positioning, remote data monitoring and wireless mobile-app communication, depending on model.
Vehicle-Specific Fit
Metal case, connector, display port and pack layout configured to the truck installation and project needs.
Representative catalogue models
Forklift battery model range
Use these sample specifications for initial planning. Final voltage, dimensions, current limits and weight must be confirmed against the selected pack drawing.
| Catalogue model | Nominal voltage / capacity | Charge current | Discharge current | Dimensions (L×W×H) | Listed weight | |
|---|---|---|---|---|---|---|
| 24V230Ah | 25.6V / 230Ah | 30–100A | 230A | 650 × 500 × 240mm | 110kg* | Product Details |
| 24V300Ah | 25.6V / 300Ah | 30–200A | 300A | 600 × 285 × 550mm | 350kg* | Product Details |
| 48V346Ah | 48V / 346Ah† | 30–200A | 346A | 840 × 620 × 520mm | 500kg* | Product Details |
| 48V400Ah | 51.2V / 400Ah | 30–200A | 400A | 1035 × 400 × 600mm | >500kg | Product Details |
| 48V420Ah | 51.2V / 420Ah | 30–200A | 420A | 1025 × 780 × 550mm | 980kg* | Product Details |
| 48V460Ah | 51.2V / 460Ah | 30–200A | 460A | 990 × 632 × 610mm | 820kg* | Product Details |
| 48V560Ah | 51.2V / 560Ah | 30–200A | 560A | 830 × 630 × 627mm | >600kg | Product Details |
| 72V412Ah | 76.8V / 412Ah | 30–200A | 412A | 1138 × 680 × 790mm | >1250kg | Product Details |
*The catalogue marks these weights as including counterweight in some model entries; verify the exact supplied configuration. †The 48V346Ah entry lists 48V nominal voltage and 58.4V charge cut-off in the source catalogue. Confirm the electrical configuration with DAPAI before ordering. Catalogue-listed charge temperature: 0–55°C; discharge temperature: −20–60°C, subject to model and configuration.
Protection & monitoring
More visibility across daily operation
Configure the information and safeguards needed by the vehicle, charger and fleet team.
Battery status
Monitor pack status and configured data such as voltage, current, temperature and state of charge.
Protection functions
Catalogue examples include overcharge, over-discharge, overcurrent and short-circuit protection, plus cell balancing.
Remote communication
GPS, remote monitoring and mobile-app wireless communication can be selected for compatible projects.
Application fit
Specify the battery around the real job.
A good selection starts with the vehicle and work cycle. Share key installation details so the battery capacity, charger and enclosure can be reviewed together.
- Forklift brand and model
- Required voltage and capacity
- Battery tray dimensions
- Connector and charger details
- Shift schedule and daily duty
- Counterweight requirements
Frequently asked questions
Forklift battery selection guide
Start with the truck specifications and operating schedule; DAPAI can help review the configuration.
How do I choose the right forklift battery?
Share the forklift brand and model, required voltage and capacity, battery-tray dimensions, connector, charger details and shift schedule so the pack can be matched to the vehicle.
Can a LiFePO4 battery replace my current lead-acid battery?
Check the truck voltage, tray fit, counterweight, charger profile and vehicle communication before selecting a replacement. A project review is recommended.
Are GPS monitoring and thermal management available?
The catalogue describes GPS positioning, remote monitoring, mobile-app communication and optional thermal management. Availability depends on the selected model and configuration.
Can the battery be opportunity charged during breaks?
This may suit some operating schedules when the battery and compatible charger are configured for it. Confirm the charging profile and duty cycle for the selected system.
OEM / ODM project enquiry
Let's match a LiFePO4 pack to your forklift.
Send the vehicle model, tray dimensions, rated voltage, desired capacity and operating schedule. DAPAI can review the battery and charger configuration for your application.
Planning a replacement? Review our forklift replacement battery guide for a checklist of voltage, capacity, tray dimensions, battery weight and charger compatibility.
