DAPAI · INDUSTRIAL CHARGING
Forklift Lead-Acid
Battery Chargers
Charging solutions for 24V, 48V, 72V and 80V forklift battery systems. Explore cabinet and compact formats, then select a configuration for your battery and site power supply.
220V / 380V input options · 30–125A listed output range
Choose the right charging format
Actual product photographs supplied by DAPAI. Cabinet appearance and control panels vary by configuration.
48V60A Cabinet charger
Compatible battery capacity: 48V, 390–450Ah.

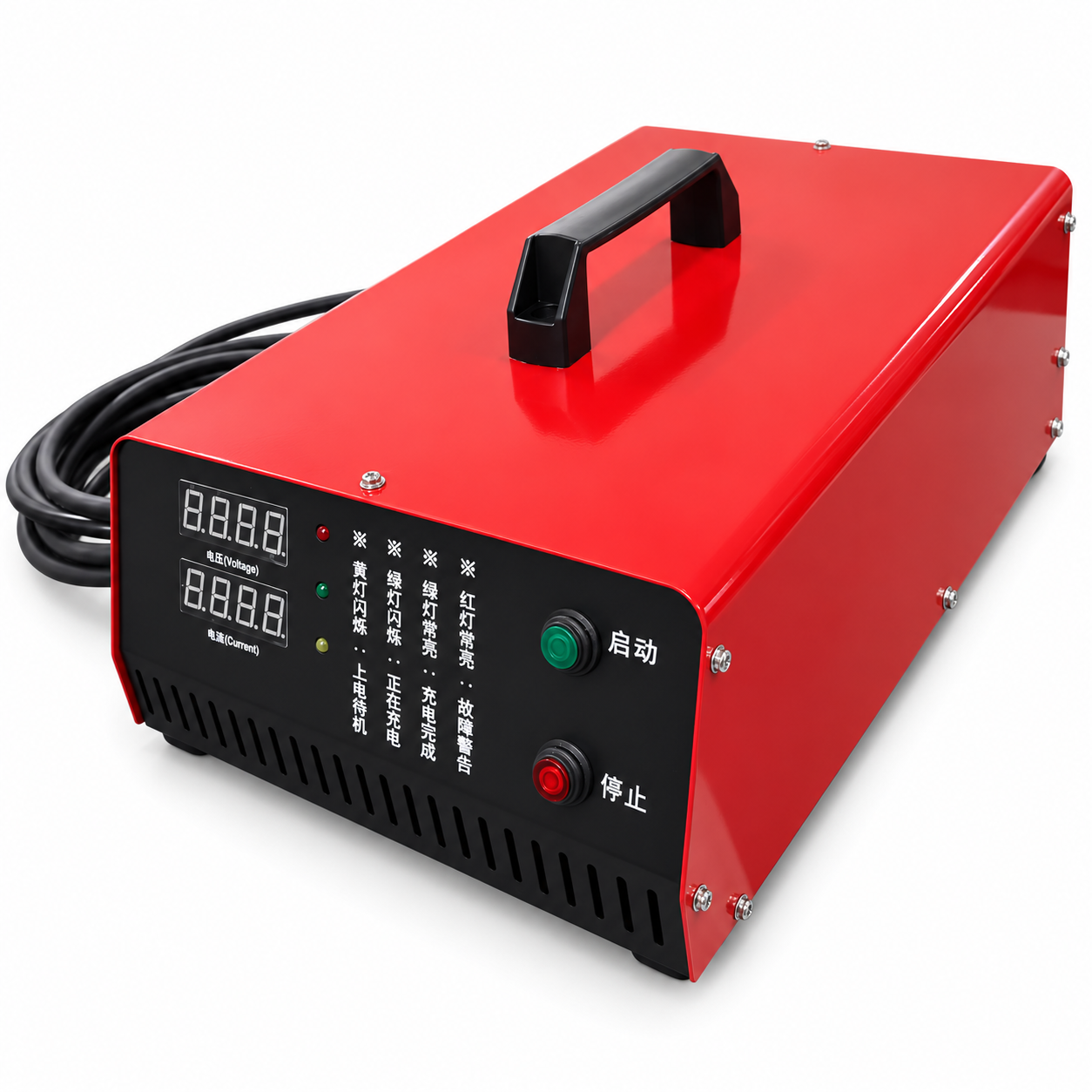

24V30A Portable charger
Compatible battery capacity: 24V, 210–270Ah.

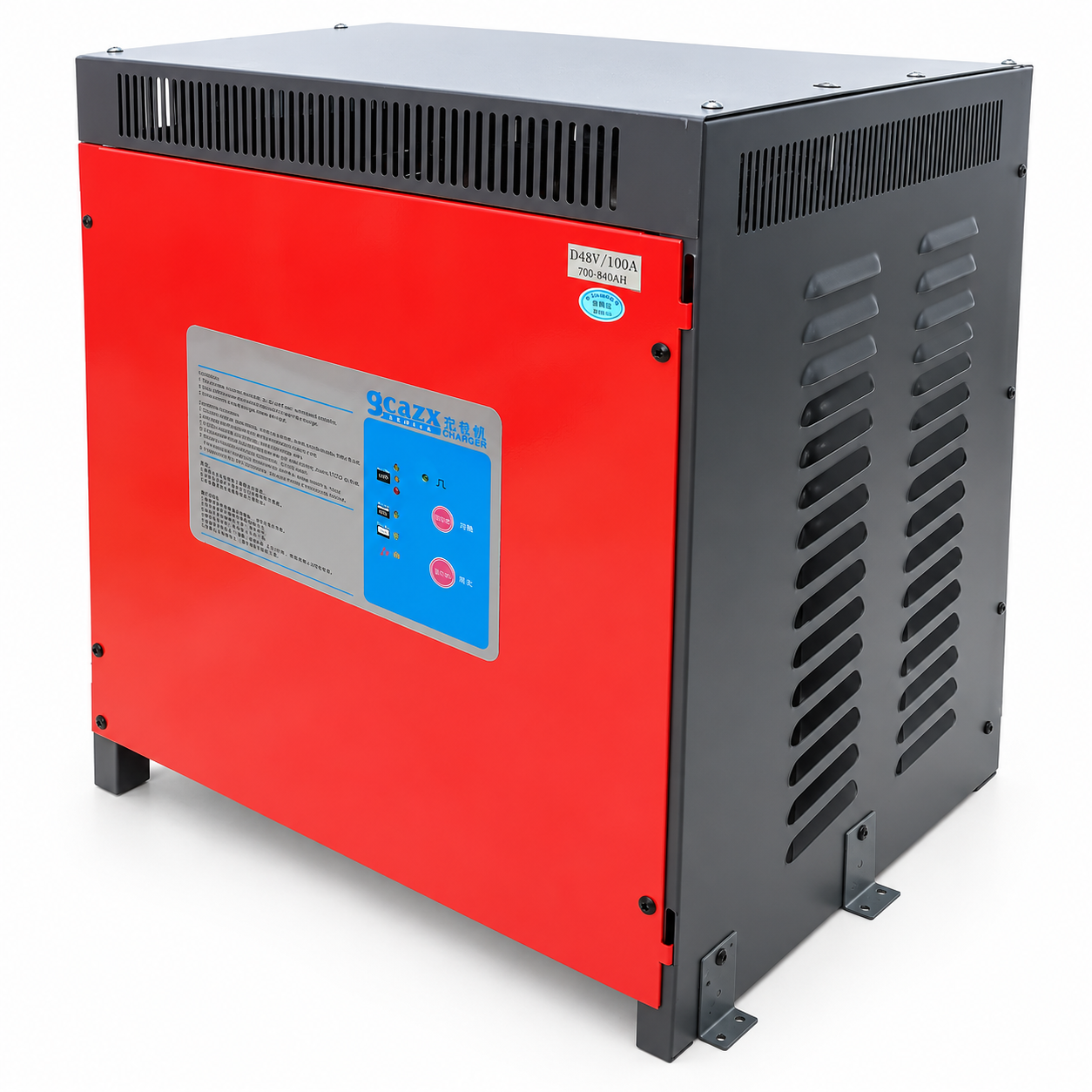

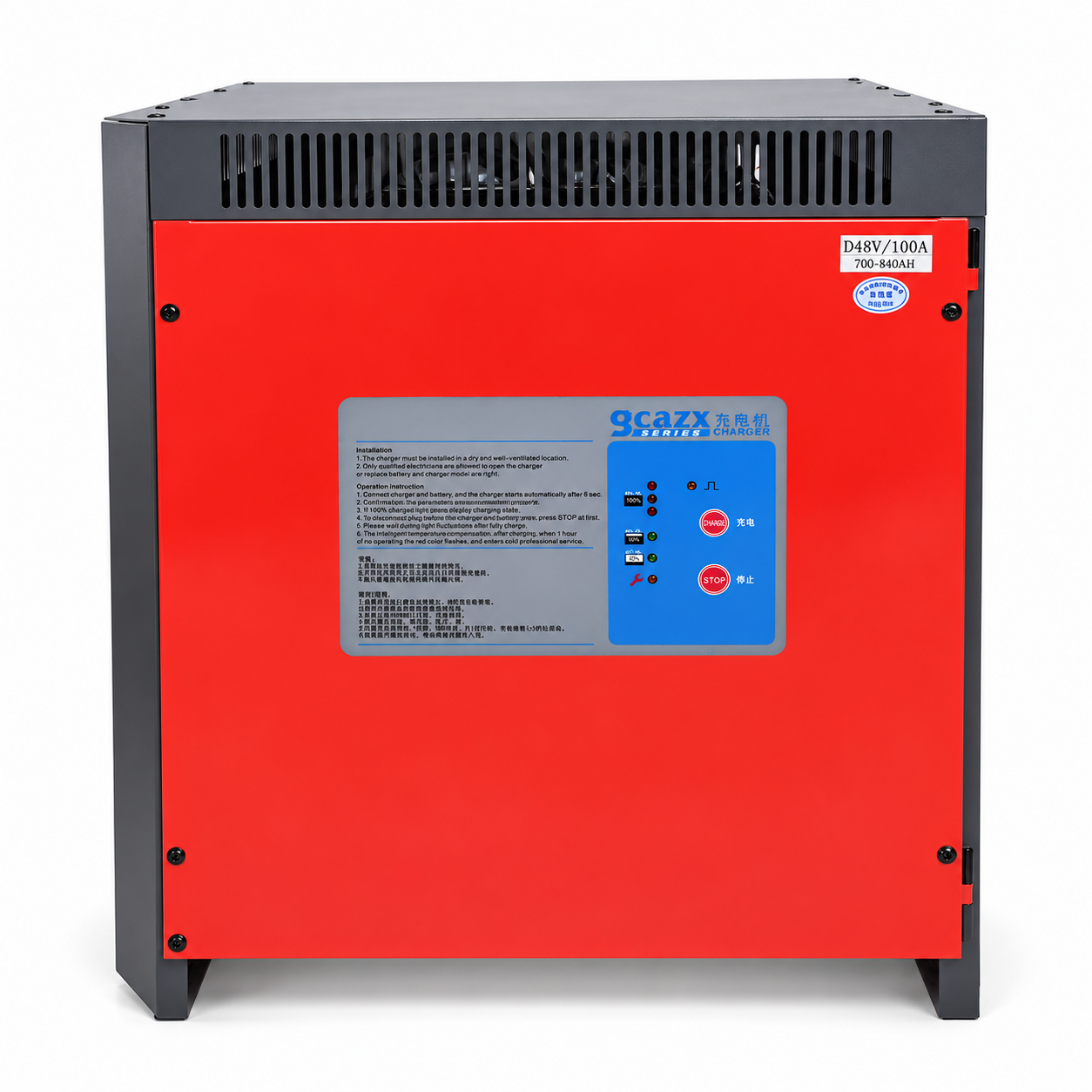

48V100A Cabinet charger
Compatible battery capacity: 48V, 700–840Ah.
Built around daily charging tasks
Visible controls
Front-panel indicators or digital displays help operators read the charger status. Features depend on the selected unit.
Industrial enclosure
The cabinet-style charger features a ventilated metal enclosure. Cabinet dimensions and control-panel layouts vary by model. Share your available installation space, supply voltage and battery specifications so we can recommend a suitable configuration.
Configuration choice
Select input voltage, output voltage, current, battery capacity range and connector to suit the installation.
220V Input — Model Specifications
Model configurations, cabinet dimensions, weights and applicable battery capacities.
Model / input-output
Economy size (mm)
Economy kg
LCD size (mm)
LCD kg
Battery (Ah)
Model / input-output
220V 24V/30A
Economy size (mm)
360×300×350
Economy kg
25
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
210–270
Model / input-output
220V 24V/30A — High*
Economy size (mm)
Portable
Economy kg
—
LCD size (mm)
—
LCD kg
—
Battery (Ah)
210–270
Model / input-output
220V 24V/40A
Economy size (mm)
360×300×350
Economy kg
27
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
280–330
Model / input-output
220V 24V/40A — High*
Economy size (mm)
Portable
Economy kg
—
LCD size (mm)
—
LCD kg
—
Battery (Ah)
280–330
Model / input-output
220V 24V/50A
Economy size (mm)
360×300×350
Economy kg
33
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
330–390
Model / input-output
220V 24V/60A
Economy size (mm)
460×410×500
Economy kg
41
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
390–450
Model / input-output
220V 24V/70A
Economy size (mm)
460×410×500
Economy kg
43
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
480–550
Model / input-output
220V 24V/80A
Economy size (mm)
460×410×500
Economy kg
44
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
550–630
Model / input-output
220V 24V/100A
Economy size (mm)
460×410×500
Economy kg
47
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
700–840
Model / input-output
220V 48V/30A
Economy size (mm)
460×410×500
Economy kg
41
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
210–270
Model / input-output
220V 48V/40A
Economy size (mm)
460×410×500
Economy kg
42
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
280–330
Model / input-output
220V 48V/50A
Economy size (mm)
460×410×500
Economy kg
50
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
330–390
Model / input-output
220V 48V/60A
Economy size (mm)
460×410×500
Economy kg
55
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
390–450
Model / input-output
220V 48V/80A
Economy size (mm)
540×490×600
Economy kg
60
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
550–630
Model / input-output
220V 72V/40A
Economy size (mm)
460×410×500
Economy kg
54
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
280–330
Model / input-output
220V 72V/60A
Economy size (mm)
540×490×600
Economy kg
80
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
390–450
Model / input-output
220V 80V/60A
Economy size (mm)
540×490×600
Economy kg
85
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
390–450
Model / input-output
220V 80V/70A
Economy size (mm)
540×490×600
Economy kg
89
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
480–550
The source sheet marks two variants “High”; their full model designations are unconfirmed. Confirm the current specifications before ordering.
380V Input — Model Specifications
Model configurations, cabinet dimensions, weights and applicable battery capacities.
Model / input-output
Economy size (mm)
Economy kg
LCD size (mm)
LCD kg
Battery (Ah)
Model / input-output
380V 24V/70A
Economy size (mm)
460×410×500
Economy kg
42
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
480–550
Model / input-output
380V 24V/80A
Economy size (mm)
460×410×500
Economy kg
44
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
550–630
Model / input-output
380V 24V/100A
Economy size (mm)
460×410×500
Economy kg
47
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
700–840
Model / input-output
380V 48V/30A
Economy size (mm)
460×410×500
Economy kg
40
LCD size (mm)
580×450×700
LCD kg
—
Battery (Ah)
210–270
Model / input-output
380V 48V/40A
Economy size (mm)
460×410×500
Economy kg
42
LCD size (mm)
580×450×700
LCD kg
56
Battery (Ah)
280–330
Model / input-output
380V 48V/50A
Economy size (mm)
460×410×500
Economy kg
45
LCD size (mm)
580×450×700
LCD kg
58
Battery (Ah)
330–390
Model / input-output
380V 48V/60A
Economy size (mm)
460×410×500
Economy kg
47
LCD size (mm)
580×450×700
LCD kg
59
Battery (Ah)
390–450
Model / input-output
380V 48V/70A
Economy size (mm)
460×410×500
Economy kg
56
LCD size (mm)
580×450×700
LCD kg
66
Battery (Ah)
480–550
Model / input-output
380V 48V/80A
Economy size (mm)
460×410×500
Economy kg
60
LCD size (mm)
580×450×700
LCD kg
73
Battery (Ah)
550–630
Model / input-output
380V 48V/100A
Economy size (mm)
540×490×600
Economy kg
85
LCD size (mm)
580×450×700
LCD kg
97
Battery (Ah)
700–840
Model / input-output
380V 48V/120A
Economy size (mm)
540×490×600
Economy kg
94
LCD size (mm)
580×450×700
LCD kg
105
Battery (Ah)
770–860
Model / input-output
380V 72V/40A
Economy size (mm)
460×410×500
Economy kg
54
LCD size (mm)
580×450×700
LCD kg
66
Battery (Ah)
280–330
Model / input-output
380V 72V/50A
Economy size (mm)
460×410×500
Economy kg
60
LCD size (mm)
580×450×700
LCD kg
72
Battery (Ah)
330–390
Model / input-output
380V 72V/60A
Economy size (mm)
540×490×600
Economy kg
80
LCD size (mm)
580×450×700
LCD kg
92
Battery (Ah)
390–450
Model / input-output
380V 72V/70A
Economy size (mm)
540×490×600
Economy kg
82
LCD size (mm)
580×450×700
LCD kg
94
Battery (Ah)
480–550
Model / input-output
380V 80V/60A
Economy size (mm)
540×490×600
Economy kg
85
LCD size (mm)
580×450×700
LCD kg
96
Battery (Ah)
390–450
Model / input-output
380V 80V/70A
Economy size (mm)
540×490×600
Economy kg
89
LCD size (mm)
580×450×700
LCD kg
99
Battery (Ah)
480–550
Model / input-output
380V 80V/80A
Economy size (mm)
540×490×600
Economy kg
98
LCD size (mm)
580×450×700
LCD kg
105
Battery (Ah)
550–630
Model / input-output
380V 80V/100A
Economy size (mm)
540×490×600
Economy kg
110
LCD size (mm)
580×450×700
LCD kg
117
Battery (Ah)
700–840
Model / input-output
380V 80V/125A
Economy size (mm)
540×490×600
Economy kg
115
LCD size (mm)
580×450×700
LCD kg
121
Battery (Ah)
840–1000
The source sheet marks two variants “High”; their full model designations are unconfirmed. Confirm the current specifications before ordering.
Tell us about your battery
01 · Battery
Share battery chemistry, nominal voltage, capacity (Ah), battery model and connector photographs.
02 · Site supply
Confirm available AC voltage, phase, frequency and installation requirements.
03 · Charging needs
Share operating shifts, charging window and preferred cabinet or display format.
Find your forklift charger
Send your battery voltage, capacity, site power supply and required quantity. We will help identify a suitable configuration.
