Forklift Lead-Acid Traction Batteries
Tubular-plate traction batteries for electric forklifts, pallet trucks, stackers and tow tractors. Multiple cell sizes support configurations matched to vehicle voltage, capacity and installation requirements.
Cell Engineering & Serviceability
Design details from the DAPAI traction battery catalogue, organized around performance, sealing and maintenance.
Positive Grid & Active Material
Quality alloy positive grids, improved active-material filling and optimized positive plate dimensions make effective use of the available cell space.

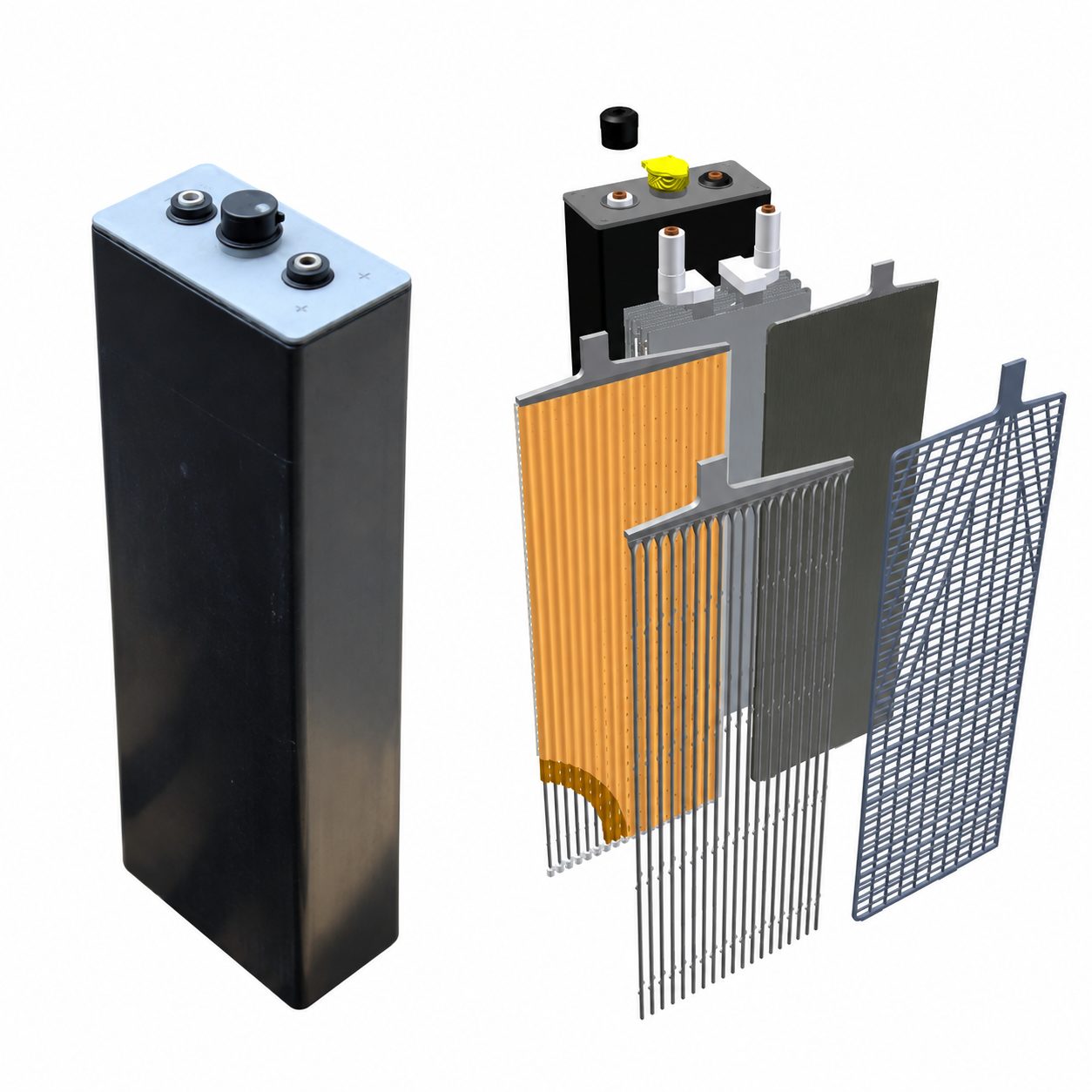

Tubular Cell Construction
Tubular positive plates are paired with flat negative plates and microporous separators. Impact-resistant polypropylene containers and heat-sealed lids form the cell enclosure.
Terminal Post Sealing
Alloy terminals incorporate internally threaded copper inserts. Compressed sealing rings around the posts help prevent electrolyte leakage.
Insulated Flexible Connectors
Insulated connector ends and a protected conductor form flexible inter-cell connections. Bolted fastening simplifies cell removal, maintenance and replacement.
Vent Plugs & Electrolyte Checks
Cell vent plugs allow charging gases to escape and provide access for water replenishment and electrolyte specific-gravity measurement.
Centralized Watering Option
Water can be supplied from a central point to the connected cells. Watering valves control the electrolyte level to simplify routine servicing.
Performance Characteristics
The catalogue includes reference curves for temperature versus capacity at the 5-hour rate, discharge voltage at different discharge rates at 30°C, depth of discharge versus cycle life, and charging voltage versus time.
Temperature & Capacity
Available capacity changes with battery temperature. Use the catalogue curve as a reference when assessing the operating environment.
Discharge Rate & Voltage
The discharge curves show how terminal voltage changes at different discharge rates and durations.
Depth of Discharge & Cycle Life
The reference curve illustrates the relationship between depth of discharge and cycle life; it is not a universal lifespan guarantee.
Reference curves apply to the conditions shown in the source. Final performance depends on the selected model, charging, maintenance and operating conditions.

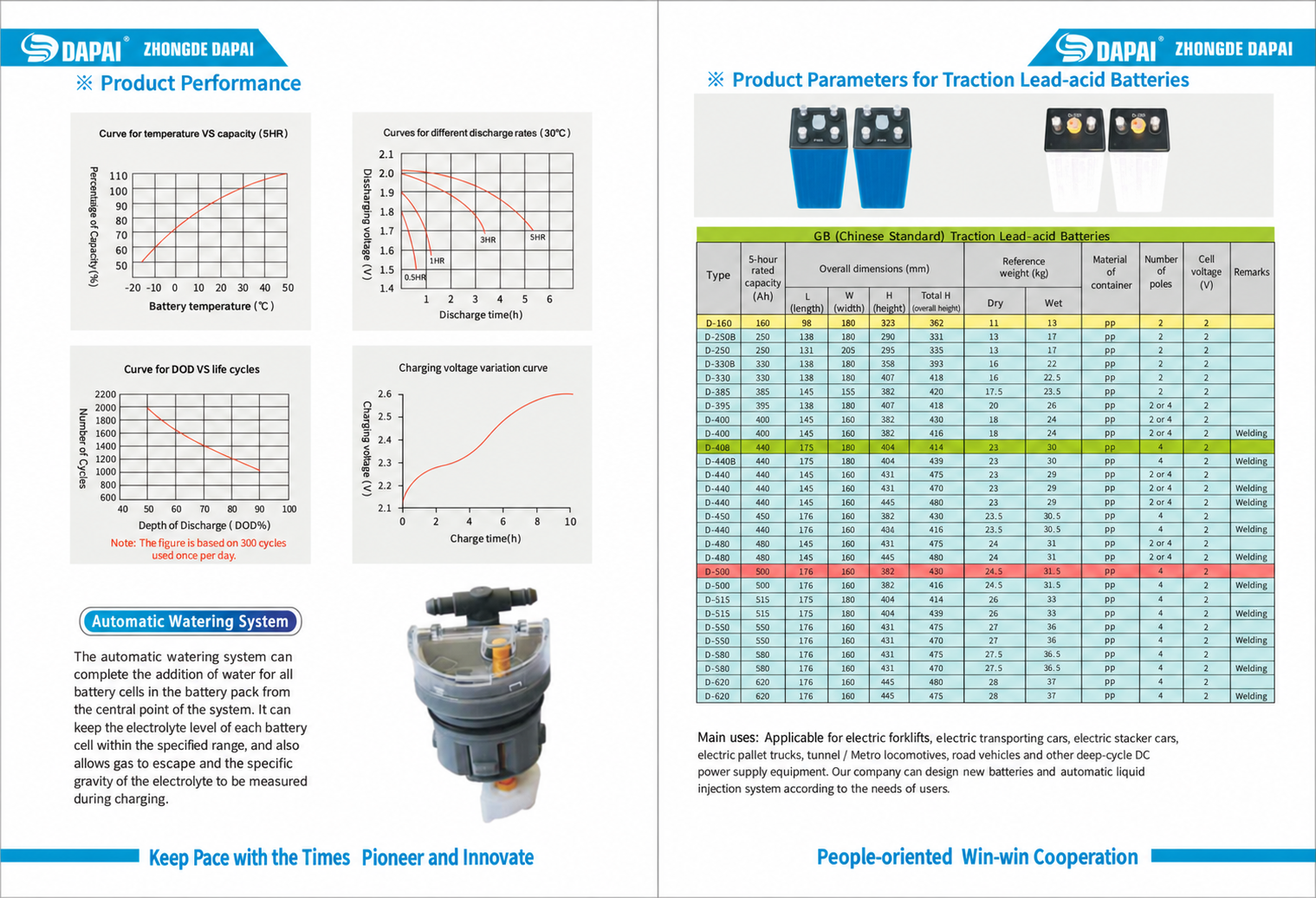

Performance Curves, Watering System & GB Cell Specifications
GB / VBS / PZS Cell Specifications
Select cells using the 5-hour rated capacity, maximum dimensions, total height, reference dry/wet weight, container material, terminal arrangement and nominal cell voltage. The original catalogue tables are retained below for accurate reference.
GB Series
GB traction cell specifications, including D-series models, dimensions, capacity and reference weight.
158 mm VBS Series
VBS traction cells with the 158 mm width shown in the catalogue. Multiple lengths, heights and capacities support different tray layouts.
198 mm PZS Series
PZS traction cells with the 198 mm width shown in the catalogue. Select the cell configuration to suit vehicle and installation requirements.

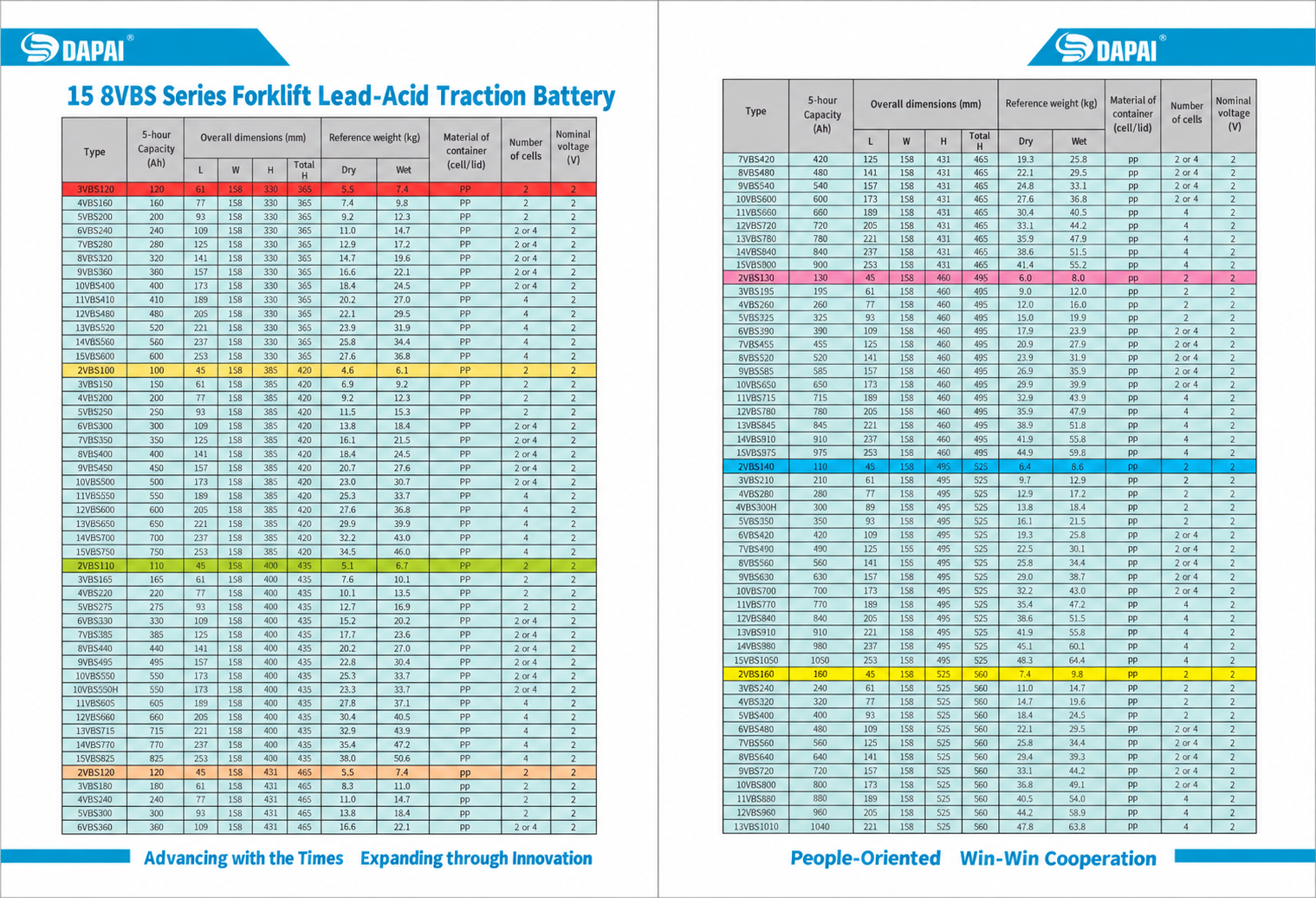

158 mm VBS Series — Specifications, Part 1

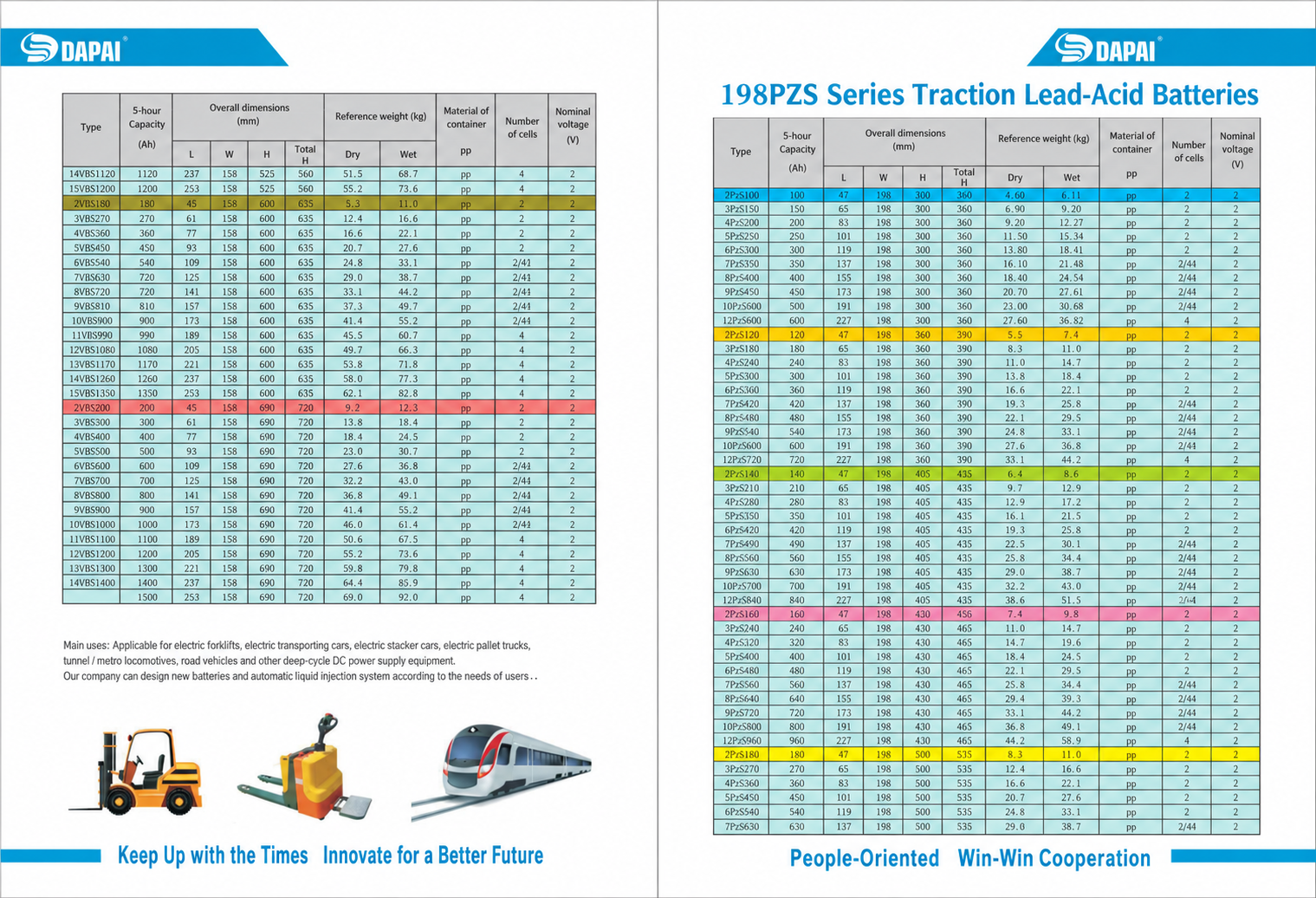

VBS Series, Part 2 / 198 mm PZS Series, Part 1

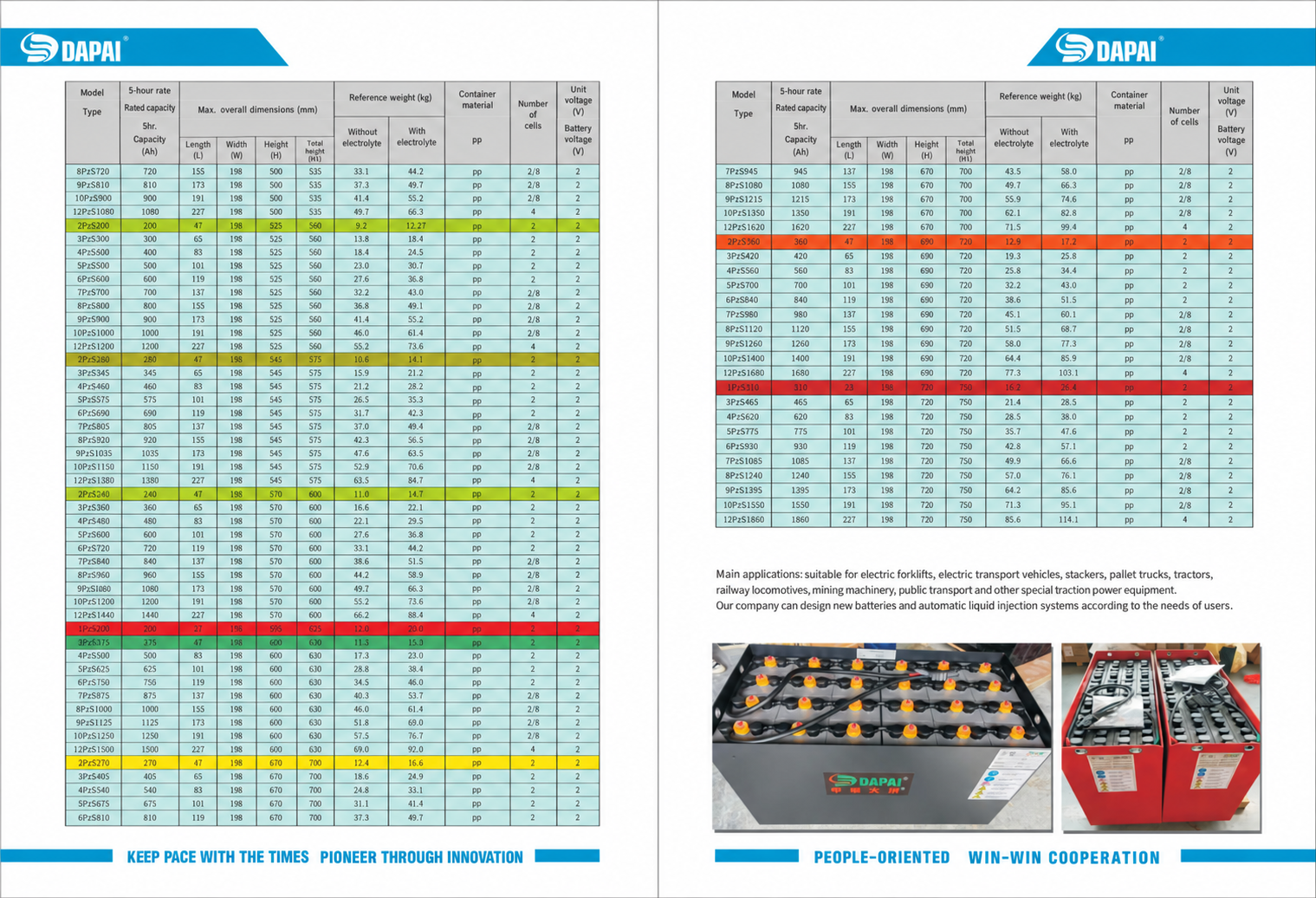

198 mm PZS Series — Specifications, Part 2
Cell tables are not complete battery-pack dimensions. Confirm tray size, cell arrangement, connector position and assembled pack weight before ordering. Reference weight tolerances and dimensions follow the original tables.
Applications
Electric Forklifts
Traction power for material handling and loading operations.
Pallet Trucks & Stackers
Battery configurations for warehouse transport and stacking equipment.
Tow Tractors & Industrial Equipment
Motive-power applications and other deep-cycle DC-powered equipment.
Maintenance & Charging
Routine maintenance includes checking electrolyte levels, replenishing water as specified, inspecting connections and using a charger matched to the battery. Follow the instructions for the selected battery model.
Centralized watering can be specified to simplify servicing. Charging and equalization settings should follow the applicable battery and charger instructions.
Company Credentials & Cooperation
The supplied catalogue contains company credit certificates, certification and test-report reproductions, a corporate vision statement and a business-partner overview. Original pages are available below for reference.

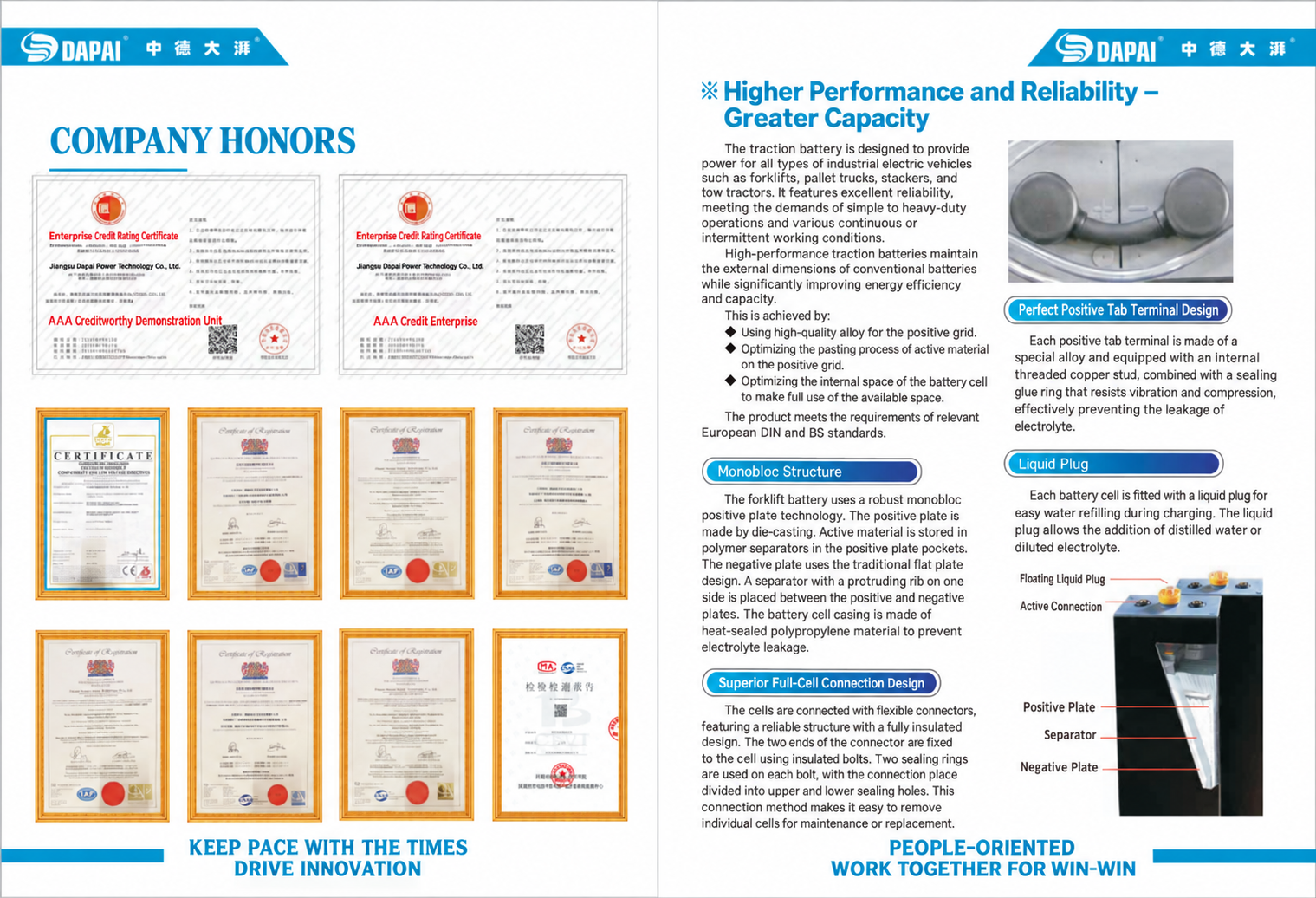

Company Honors, Cell Construction, Terminals & Connections

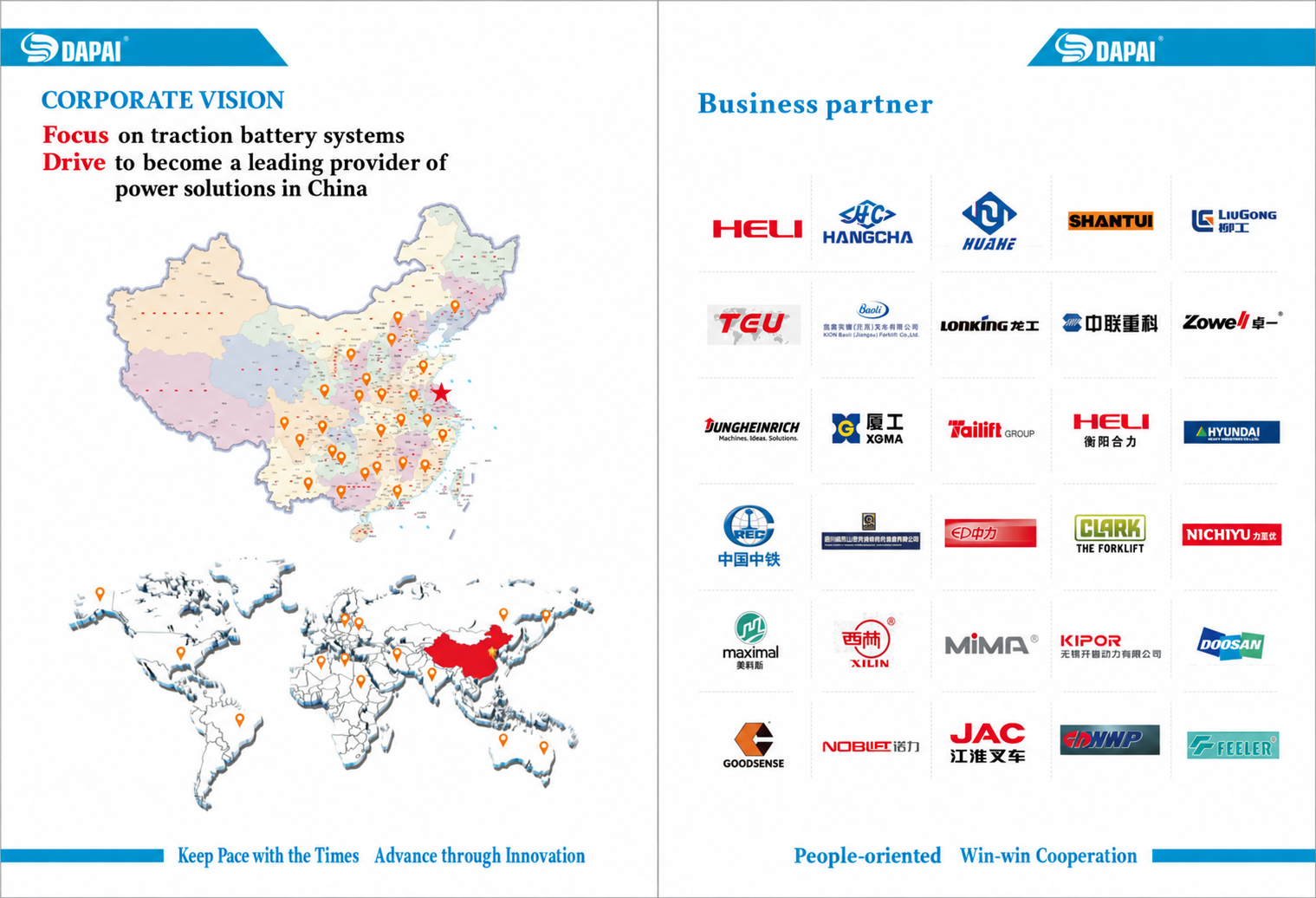

Corporate Vision & Business-Partner Overview
Certificate reproductions and partner logos are presented as shown in the supplied catalogue. Current certificate validity, applicable product scope and cooperation details can be confirmed on request.
Find the Right Battery for Your Forklift
Send your vehicle model, battery voltage, capacity, tray dimensions and connector requirements for product selection.
